OCTAGON SX88 V2 4K UHD S2+IP E2 Linux + DEFINE Linux OS Dual Multiboot, SAT>IP Satellite Receiver

The new SX V2 series from Octagon is the combined version of the highly sought-after SF and SX models. This receiver with Dual OS meets all the requirements of a multimedia device and now offers even more possibilities

With the SX88 V2 4K you get a very powerful satellite receiver with a 15000 DMIPS quad core processor, the features and functions of which you can adapt and expand to your own wishes at any time thanks to images, plugins, addons and skins.

This receiver is equipped with many media library functions, is suitable for satellite reception and supports modern features such as E2 multiroom TV client system, home media, video on demand (VoD), playback of digital channels in 4K UHD and OTT content ( Sat to IP TV, YouTube, web radio and much more).

By connecting an external hard drive (HDD), a USB stick or the home network, this receiver turns into a multimedia player and you can therefore enjoy your holiday pictures, favorite music or videos on the connected large TV.

Using the included IR sensor, the device can also be easily mounted or hidden behind the television or in a cupboard.

VERSATILE:
Receiver with PVR recording function and time-shifted television via external HDD hard drive or USB stick, YouTube, media player & media library, Internet, plug-in download, suitable for camping and much more.

EXTENSIVE EQUIPMENT:
Dual OS with E2 Linux and Define OS, 4K UHD Sat DVB-S2 tuner, receiver with recording function, E2 Linux OS supports customizable skin user interface and many free plugins extensions (apps).

USER-FRIENDLY:
Intuitive multilingual menu, extended EPG (Electronic Program Guide when transmitted), numerous images and skins available for download, Sat to IP TV optimized and E2 Multiroom Client Support.

FUTURE-PROOF:
4K H.265 HEVC UHD processor, 4GB eMMC Flash/ 1GB DDR3 DRAM, HDMI & USB with PVR function, LAN, AV via RCA, Sat to IP TV optimized.

KEY FEATURES:
- Dual OS: E2 Linux & Define OS Linux
- 4K H.265 HEVC UHD Processor (3840 x 2160)
- Huawei Hisilicon Hi3798MV300 Chipset
- Quad Core 32-Bit 4x 1.6GHz 15000 DMIPS Processor
- Multiroom Client & Sat to IP Client Support
- RAM 1GB DDR3 RAM
- Flash memory 4GB eMMC Flash
- Fast boot time of approx. 20 seconds
- LAN Ethernet (100Mbps) network interface
- 4-digit 7-segment display
- CA card reader
- Hardware BlindScan (blind search)
- DVB-S2 tuner + Multistream support
– HDMI 2.0a & USB 2.0 ports
– HDMI CEC support
– Infrared receiver for hidden mounting
– Learnable remote control

SPECIAL FEATURES:
- Internet Radio & YouTube
- Media libraries of public broadcasters
- WebInterface Touch & FTP
- WiFi & 3G modem via USB
- DLNA player & media player with recording & TimeShift function
- TV & radio channel list with favorite lists
- Unlimited creation of favorite lists
– Extended EPG (electronic program guide)
– OSD user interface can be customized in many ways (skin support)
– Free plugins extensions
– DiSEqC 1.0/1.1/1.2, USALS, Unicable, Fast-Scan
– 0.5W Deep Stand-by
– 12V connection (also as a camping receiver Suitable for motorhomes or caravans (12V car adapter not included)

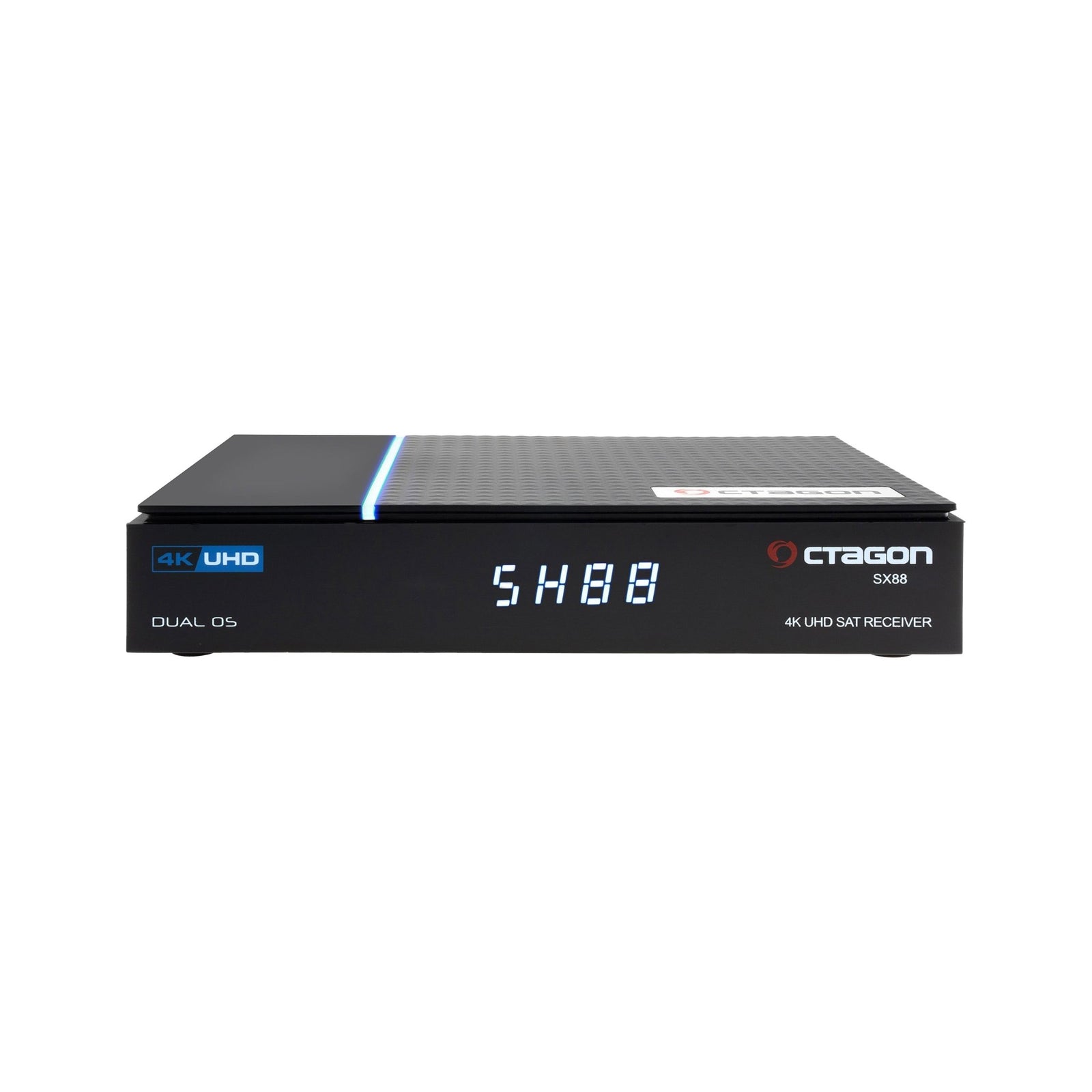

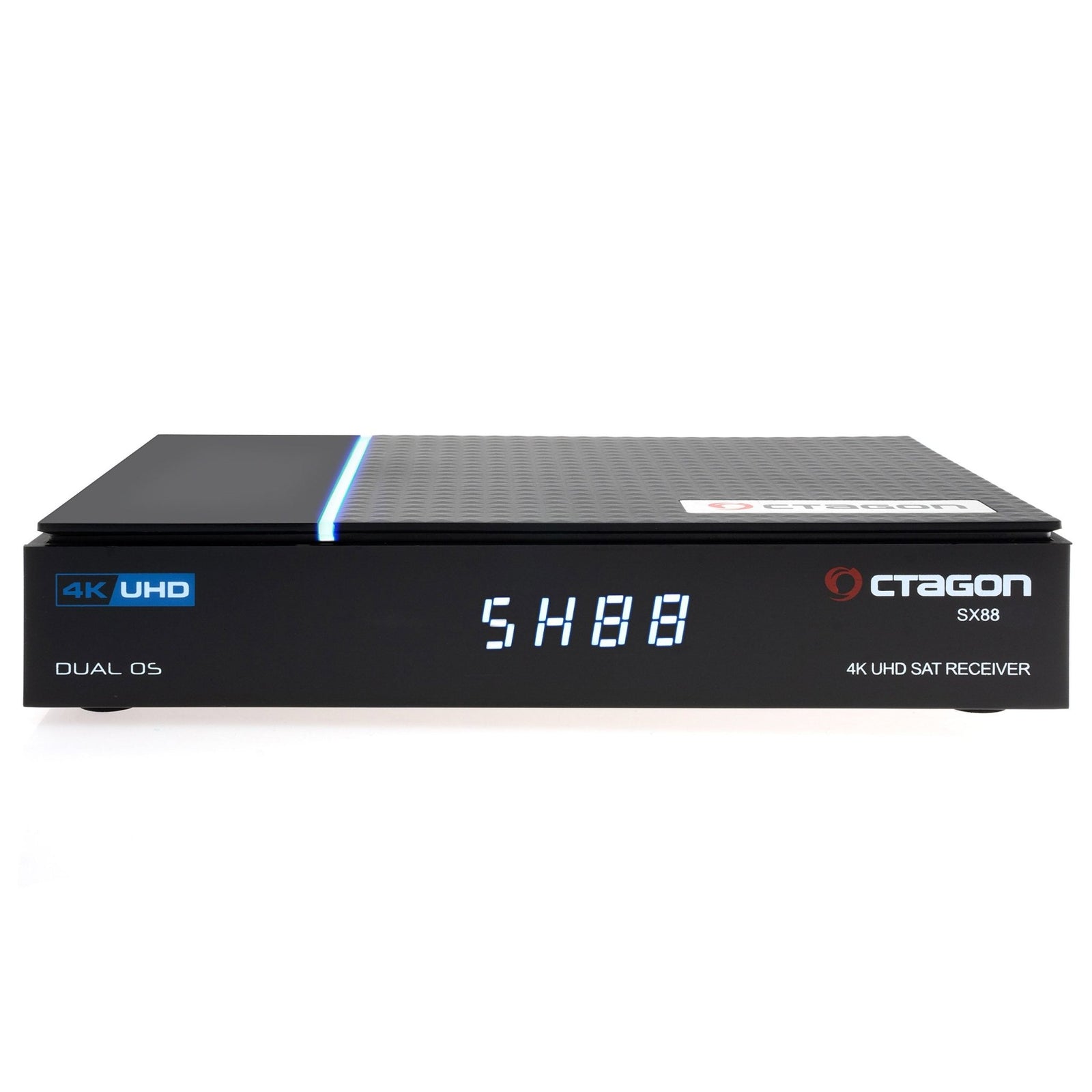

FRONT SIDE:
– 4-digit 7-segment display
– IR sensor (infrared receiver)

DEVICE TOP PANEL:
– LED display (red / blue)

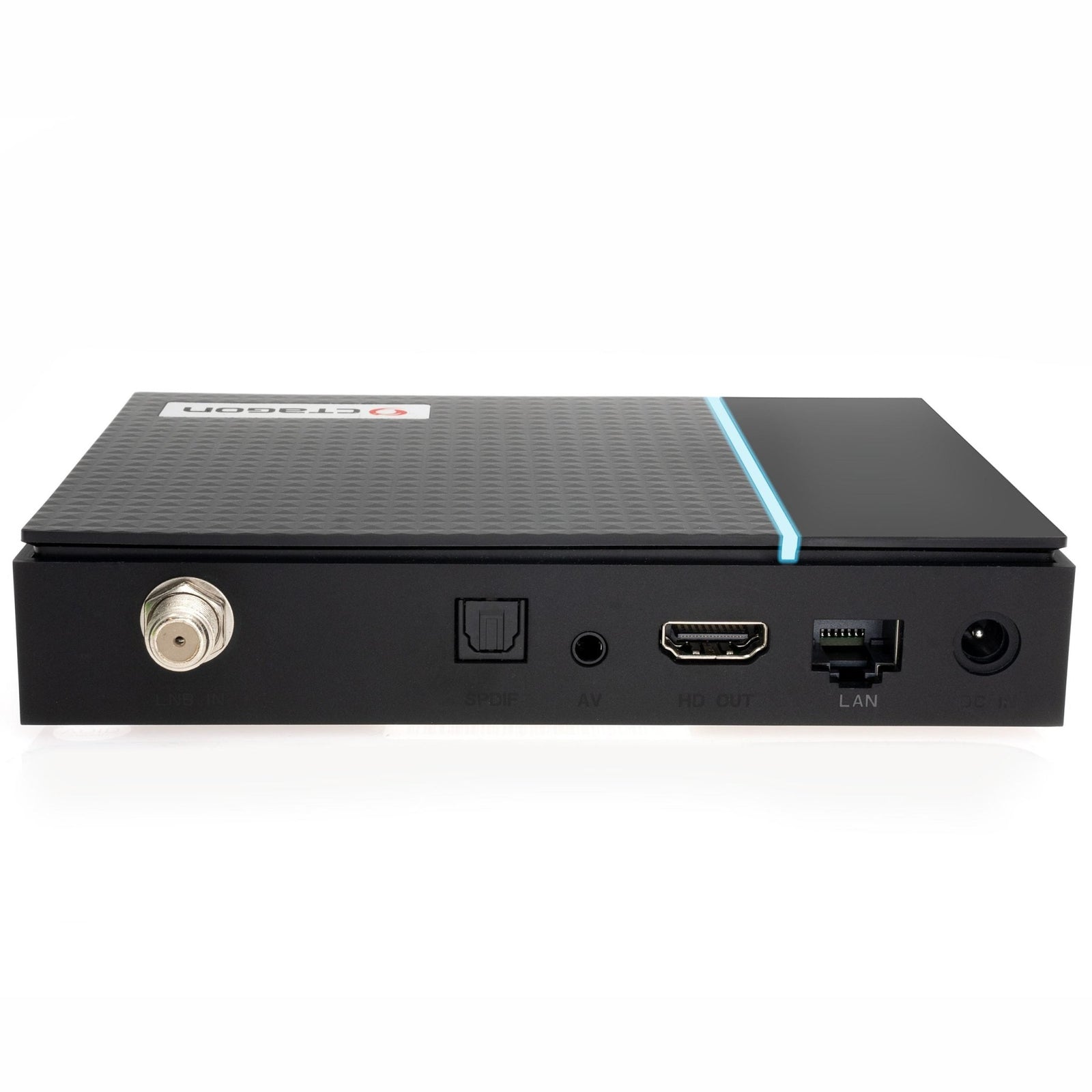

BACK PANEL:
– DVB-S2 tuner LNB input for satellite dish
– Digital audio socket (S/PDIF)
– AV – Audio video socket – Jack to RCA
– HDMI 2.0a output
– Network 10/100Mbit connection
– DC-12V power supply with US Plug

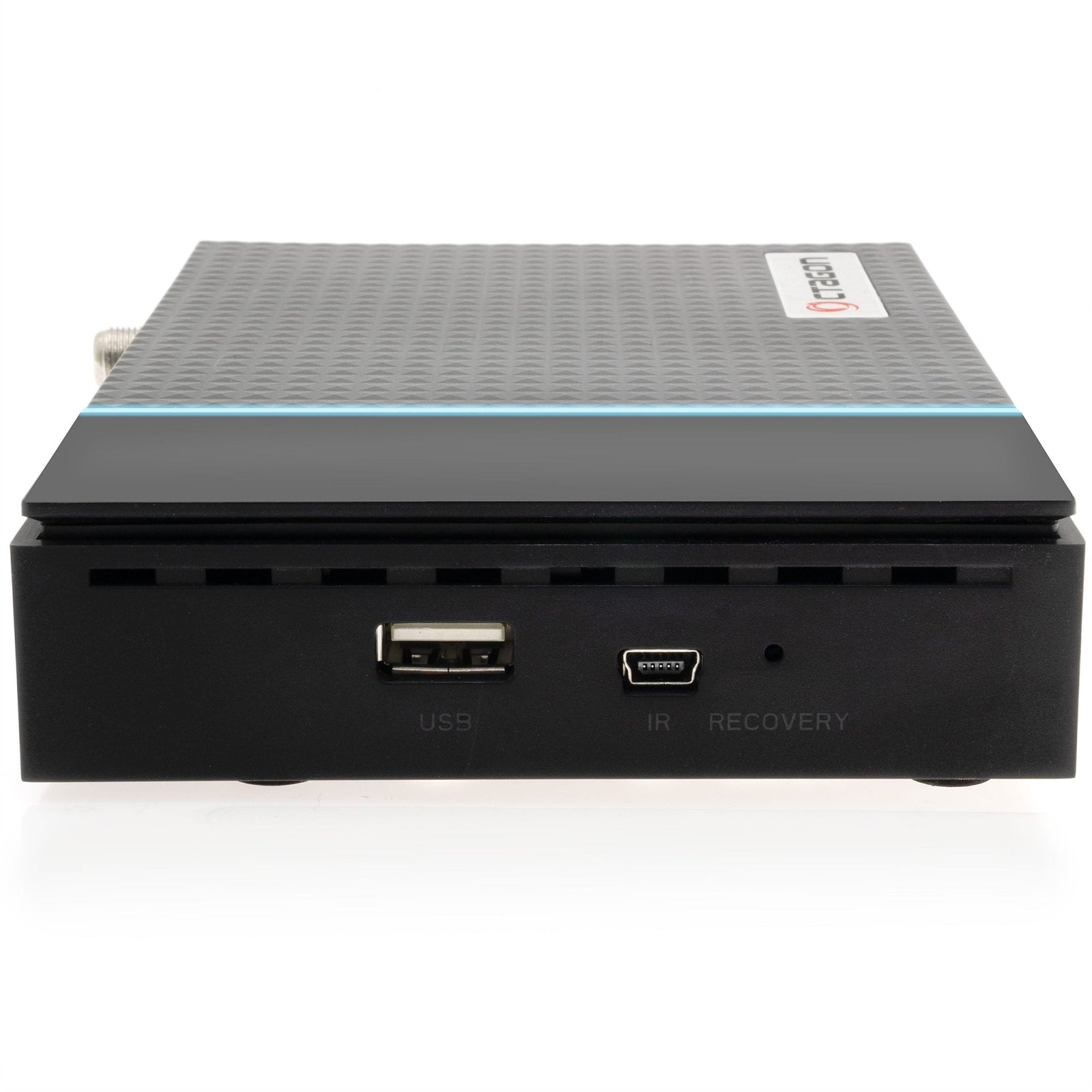

RIGHT SIDE:
– CA card reader
– USB 2.0 port

LEFT SIDE:
– USB 2.0 port
– LED/IR (external display or IR infrared receiver) connection

SCOPE OF DELIVERY:
– SX88 V2 4K UHD S2+IP DUAL OS Sat Receiver

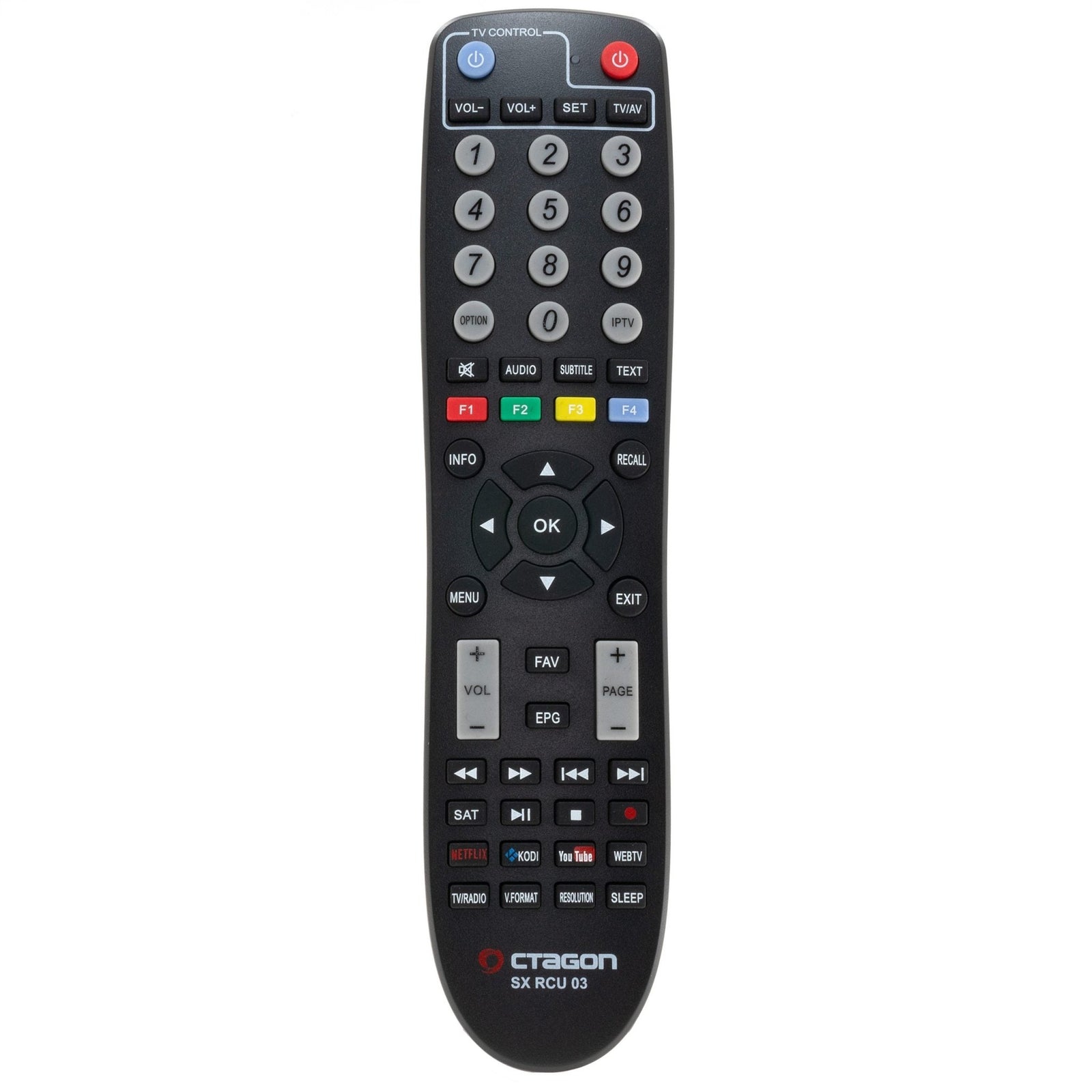

– Learnable remote control
– Power supply 12V adapter
– HDMI cable
– IR infrared receiver
– Operating instructions (in German & English)
– 2 x AAA batteries

OTHER:
- Dimensions (LxDxH) 148 x 103 x 30 mm
- EAN barcode 4260189999755
- Power supply (power supply) DC12V-1.5A
